Jenkins免密拉取GitLab項目

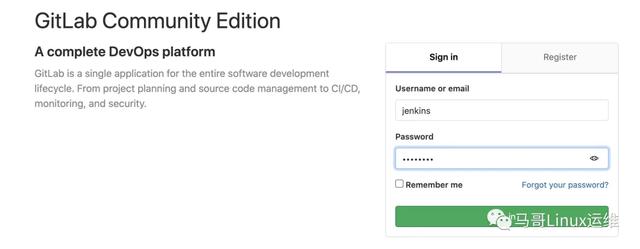

1.在Jenkins上為GitLab創建一個專有的拉取代碼的賬號 Jenkins需要構建哪些項目就在GitLab給予賬號相應權限 我這里已經創建過Jenkins用戶，下面用它登錄后添加SSH-KEY

2.在Jenkins服務器上生成ssh-key

[root@jenkins ~]# ssh-keygen -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:IUQIuu0SAdSbZvENbIjFYTrUrnuqKGBmZtwPj6lvz60 root@jenkins
The key's randomart image is:
+---[RSA 2048]----+
|ooB=+oo          |
|ooo*.=           |
|oo. * + .        |
| +.* . o .       |
|+ *     S        |
|.@ o             |
|O o *            |
|oo =.o.          |
|=o*..E..         |
+----[SHA256]-----+

查看公鑰

[root@jenkins ~]# cat /root/.ssh/id_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQC7ckQQf4N93Rjf0ts3Lk4siL6FZmZiBiB+ouwTgw9kKof2NeJTguf0aNfDsgSEet4+bJ53ZKztsFZE/C+sqk7grqeLeYDFBWgdZBz1dmCYT51tRFmZPDEDclOIMc2tz0G50g6DFA1dvIfkzeVbKjBNN0o80FSAwAzrtjMrkyaDcrOmYekiSPM8JYJTTcFLCzIBXz7SXOmKH5vyoAIVpdcwnIhkHNLKfD0MdzGb7Kz/pKMnLubodcxyNir6fqw76qwMe1DE0NtQzpaCrTYhVnAizVqCDek0GMZjTG1vWYNn6a8G7omV3Gde1XjcmjAj6ftVQiVLBRJaIGKI4R/B//nd root@jenkins

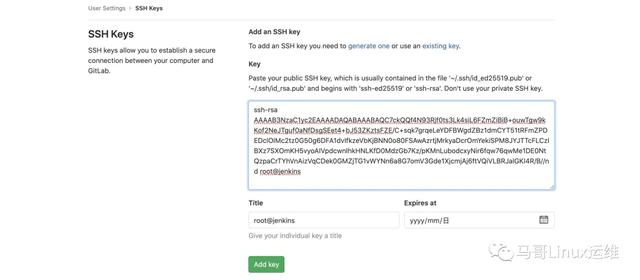

將Jenkins的公鑰填入GitLab賬號中

3.測試SSH-KEY 到j(luò)enkins服務器上拉取項目來測試ssh-key免密是否生效

[root@jenkins ~]# yum install git -y
[root@jenkins ~]# git clone git@106.14.10.124:dev01/sample.git
正克隆到 'sample'...
The authenticity of host '106.14.10.124 (106.14.10.124)' can't be established.
ECDSA key fingerprint is SHA256:bO22/HlgAAGXi9CXTxDE6wvNCUcTs2OajL9PinZMN/0.
ECDSA key fingerprint is MD5:ec:4f:14:0a:b6:72:cf:6e:da:5b:fa:5b:be:b9:2f:db.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '106.14.10.124' (ECDSA) to the list of known hosts.
remote: Enumerating objects: 6, done.
remote: Counting objects: 100% (6/6), done.
remote: Compressing objects: 100% (4/4), done.
remote: Total 6 (delta 0), reused 0 (delta 0), pack-reused 0
接收對象中: 100% (6/6), done.

如上，ssh-key已生效

配置jenkins自動拉取代碼

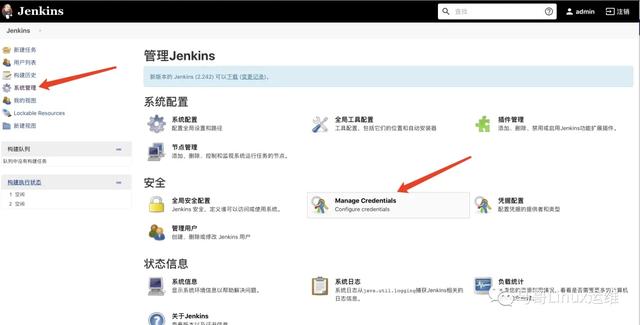

1.jenkins 服務器添加證書 系統配置——》Manage Credentials

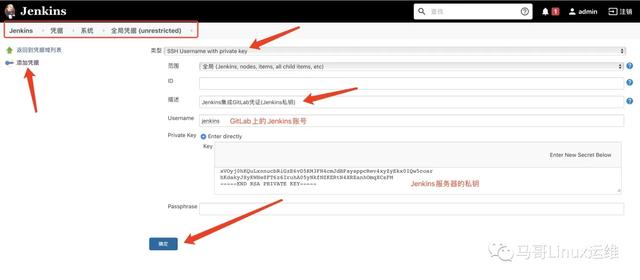

系統配置——》Manage Credentials——》Jenkins——》全局憑證——》添加憑證

這樣的話Jenkins服務器拉取GitLab的代碼就不需要再進行認證了。

Jenkins安裝GitLab插件

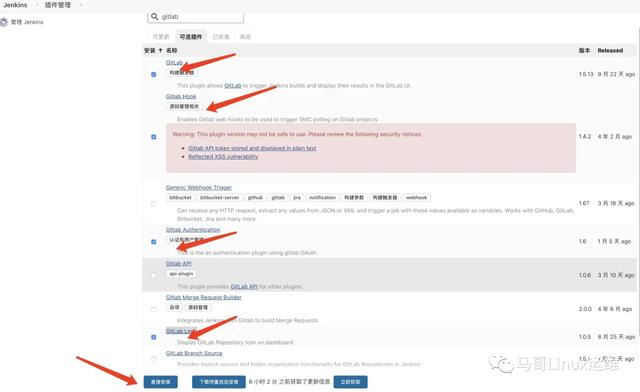

1.安裝插件 插件名稱：

?GitLab

?Gitlab Hook

?Gitlab Authentication

?GitLab Logo

安裝完成后重啟Jenkins

GitLab為Jenkins生成Token

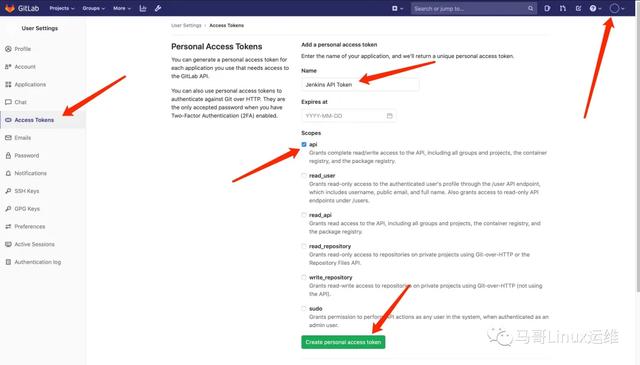

1.我們使用Jenkins用戶登錄GitLab 然后使用Jenkins用戶創建Token

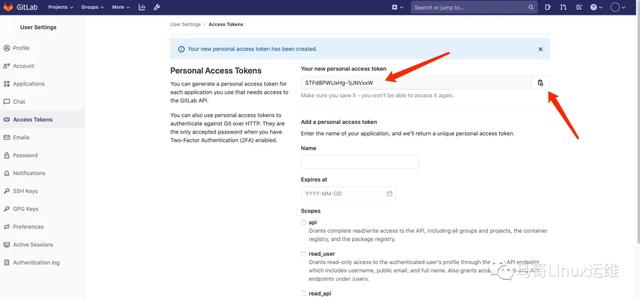

2.復制創建的Token

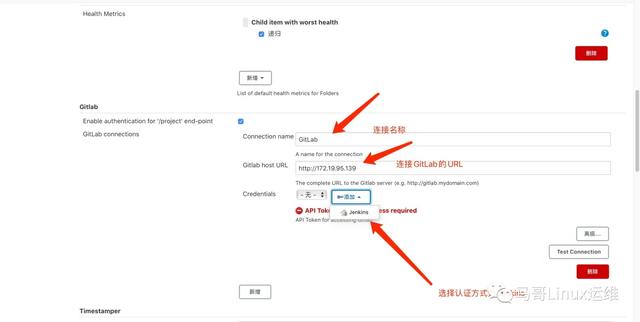

3.打開Jenkins 系統管理——》系統配置

輸入以下相關內容

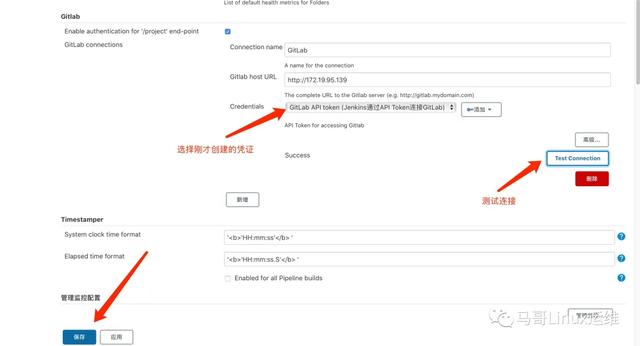

選擇憑證，測試后保存

4.查看憑證 現在有以下兩種方式與GitLab進行認證

?通過GitLab上Jenkins用戶的密鑰(GitLab綁定Jenkins用戶的公鑰，Jenkins綁定GitLab上Jenkins用戶的私鑰)、

?通過GitLab上Jenkins用戶的API Token綁定到Jenkins上的GitLab authentication插件上進行連接。
Jenkins構建流水線

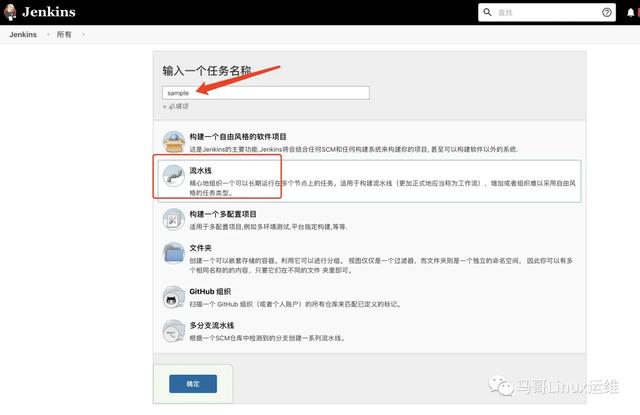

創建Project 新建任務——》流水線

2.選擇流水線語法

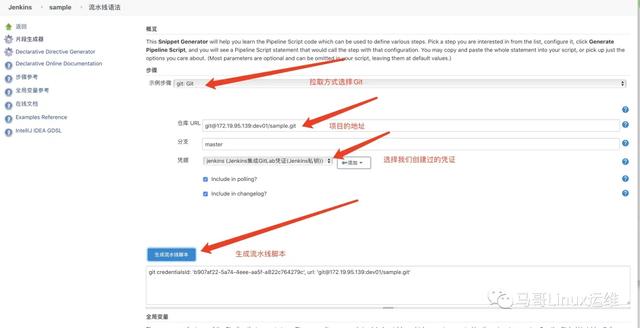

3.生成流水線腳本

復制生成的git腳本

4.編寫Pipline腳本 我這里腳本如下

node {
    stage('拉取代碼'){
        git credentialsId: 'b907af22-5a74-4eee-aa5f-a822c764279c', url: 'git@172.19.95.139:dev01/sample.git'
        echo "Code Pull"
    }
    stage('代碼掃描'){
        echo "Code Scanning"
    }
    stage('代碼構建'){
        echo "Code Build"
    }
    stage('是否部署'){
        input '是否部署'
    }
    stage('開始部署'){
        sh '/opt/jenkins/sample/sample_release.sh'
    }
}

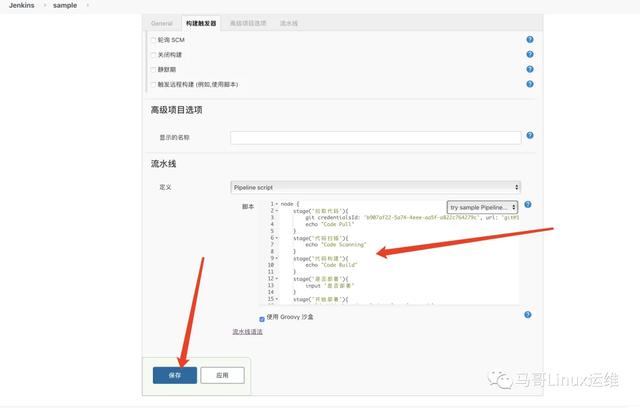

將以上腳本寫流水線中

上面腳本最后執行了/opt/jenkins/sample/sample_release.sh腳本，我們到執行任務的Jenkins服務器上去編寫這個部署腳本。腳本如下：jenkins服務器將/usr/local/src/sample.zip文件拷貝到了172.19.182.107上

[root@jenkins /]# cat /opt/jenkins/sample/sample_release.sh
#!/usr/bin/env bash

scp /usr/local/src/sample.zip root@172.19.182.107:/usr/local/

這里我們需要先讓Jenkins服務器與172.19.182.107做免密登錄,將Jenkins的公鑰拷貝到172.19.182.107服務中的/root/.ssh/authorized_keys文件中

#Jenkins的公鑰(這里為root的公鑰,Jenkins進程就需要用root用戶運行)
[root@jenkins /]# cat /root/.ssh/id_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQC7ckQQf4N93Rjf0ts3Lk4siL6FZmZiBiB+ouwTgw9kKof2NeJTguf0aNfDsgSEet4+bJ53ZKztsFZE/C+sqk7grqeLeYDFBWgdZBz1dmCYT51tRFmZPDEDclOIMc2tz0G50g6DFA1dvIfkzeVbKjBNN0o80FSAwAzrtjMrkyaDcrOmYekiSPM8JYJTTcFLCzIBXz7SXOmKH5vyoAIVpdcwnIhkHNLKfD0MdzGb7Kz/pKMnLubodcxyNir6fqw76qwMe1DE0NtQzpaCrTYhVnAizVqCDek0GMZjTG1vWYNn6a8G7omV3Gde1XjcmjAj6ftVQiVLBRJaIGKI4R/B//nd root@jenkins

#172.19.182.107服務器的authorized_keys文件
cat /root/.ssh/authorized_keys
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQC7ckQQf4N93Rjf0ts3Lk4siL6FZmZiBiB+ouwTgw9kKof2NeJTguf0aNfDsgSEet4+bJ53ZKztsFZE/C+sqk7grqeLeYDFBWgdZBz1dmCYT51tRFmZPDEDclOIMc2tz0G50g6DFA1dvIfkzeVbKjBNN0o80FSAwAzrtjMrkyaDcrOmYekiSPM8JYJTTcFLCzIBXz7SXOmKH5vyoAIVpdcwnIhkHNLKfD0MdzGb7Kz/pKMnLubodcxyNir6fqw76qwMe1DE0NtQzpaCrTYhVnAizVqCDek0GMZjTG1vWYNn6a8G7omV3Gde1XjcmjAj6ftVQiVLBRJaIGKI4R/B//nd root@jenkins

#測試免密登錄
[root@jenkins /]# ssh root@172.19.182.107
Last login: Tue Jun 30 20:26:12 2020 from 172.19.206.72

Welcome to Alibaba Cloud Elastic Compute Service !

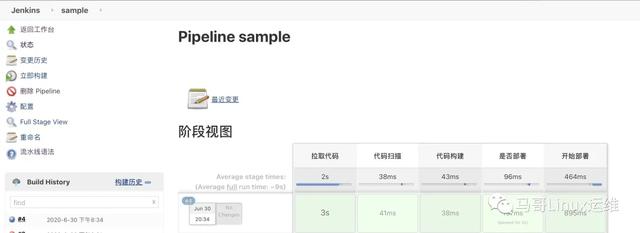

Jenkins執行任務

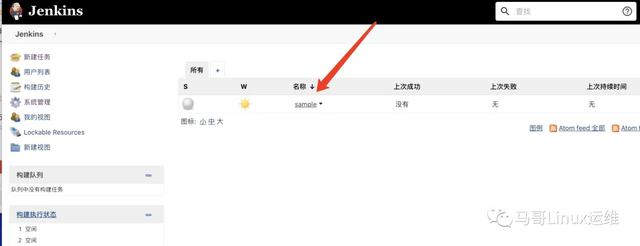

1.進入到任務中

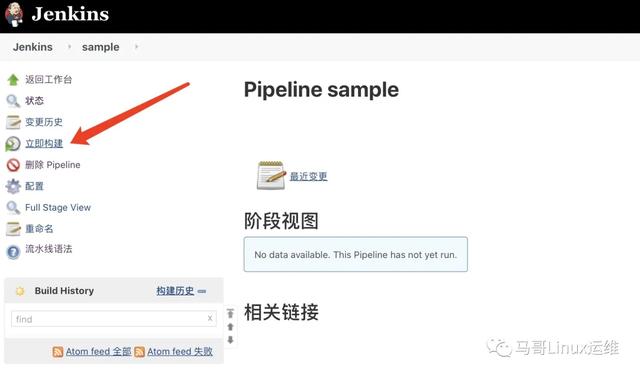

2.點擊立即構建

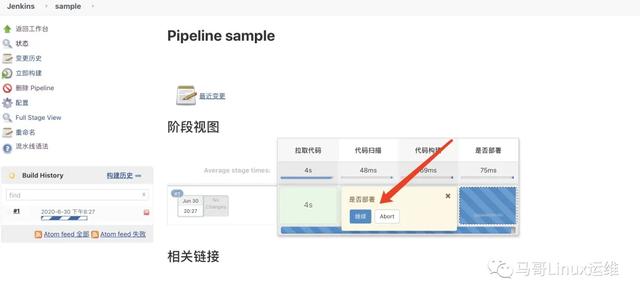

3.是否部署
